• Mirror, inside rearview manual day/night
• Seat trim, Vinyl
• SiriusXM Satellite Radio, delete

• Air cleaner, high-capacity
• Brakes, 4-wheel antilock, 4-wheel disc
• Four wheel drive
• Frame, fully-boxed, hydroformed front section

• Daytime Running Lamps with automatic exterior lamp control
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

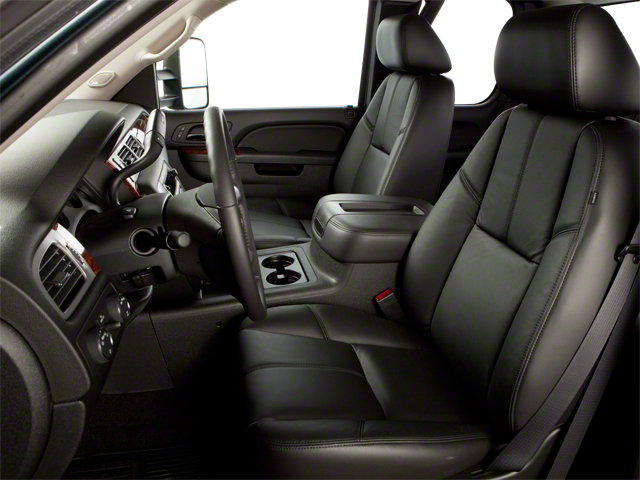

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND FRONT PASSENGER MANUAL RECLINING

• with outboard head restraints and center fold-down armrest with storage (STD)

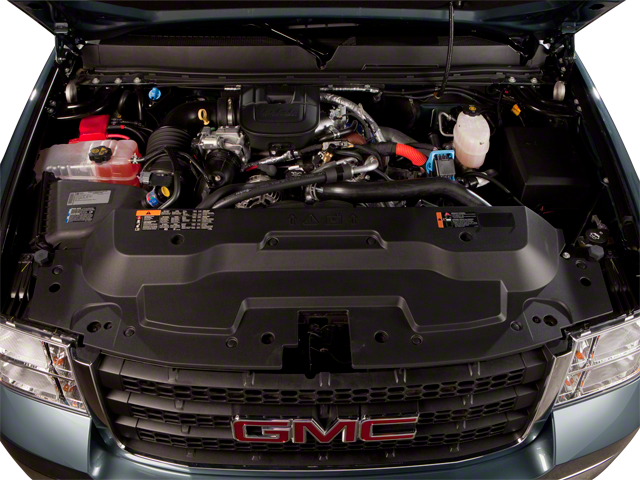

ENGINE, VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE FLEXFUEL

• capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm
• 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (E63) wideside pickup box; (322 hp [240.1 kW] @ 4400 rpm
• 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)

DARK TITANIUM, VINYL SEAT TRIM

• (STD)

WHEELS, 17" (43.2 CM) STEEL

• includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered (STD)

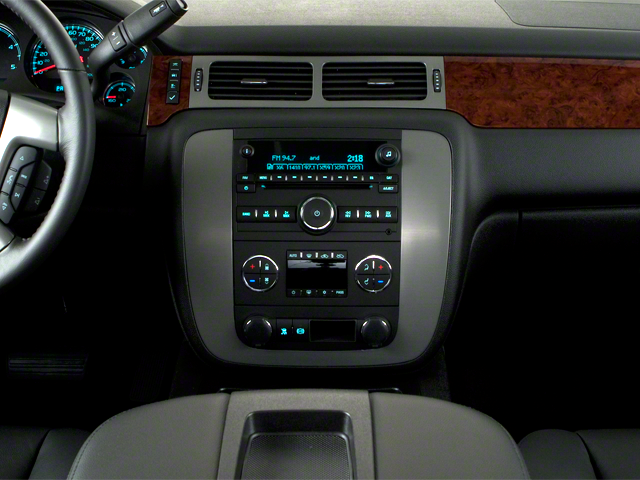

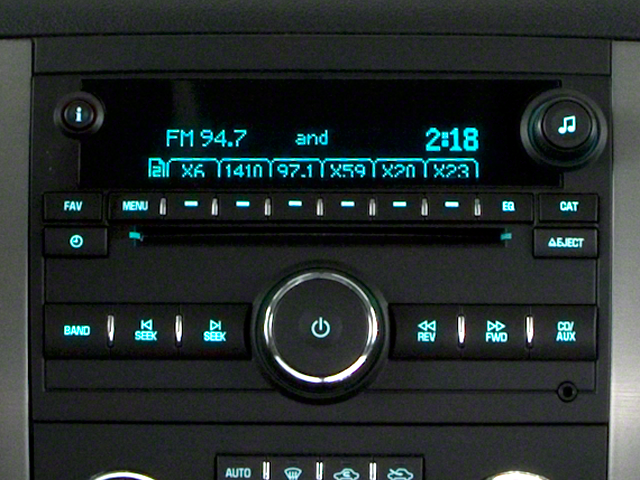

AUDIO SYSTEM, AM/FM STEREO WITH MP3 COMPATIBLE CD PLAYER

• seek-and-scan
• digital clock
• auto-tone control
• Radio Data System (RDS)
• speed-compensated volume and TheftLock

• Work Truck Package
• 3.73 Rear Axle Ratio
• Heavy-Duty Rear Automatic Locking Differential
• 17" Steel Wheels
• Front 40/20/40 Split-Bench Seat
• Vinyl Seat Trim
• AM/FM Stereo w/MP3 Compatible CD Player
• AM/FM Stereo w/Seek & Scan/Digital Clock
• Heavy-Duty Handling/Trailering Suspension Package
• Heavy-Duty Trailering Equipment (Retail)
• Integrated Trailer Brake Controller
• 6 Speaker Audio System Feature
• 4-Wheel Disc Brakes
• Front Center Armrest w/Storage
• Front beverage holders
• Variably intermittent wipers
• Traction control

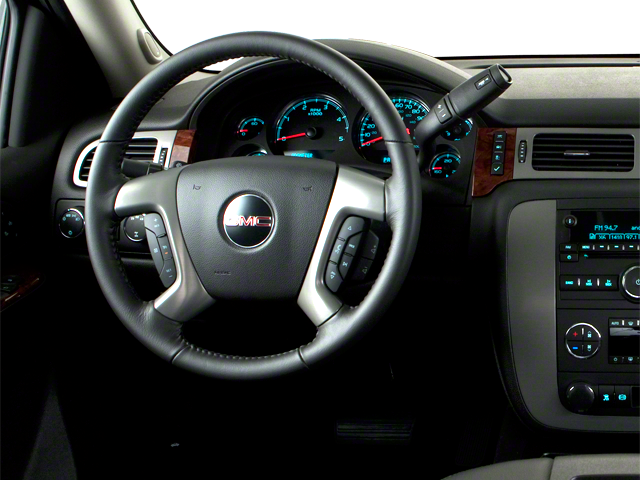

• Tilt steering wheel
• Speed control
• Rear step bumper
• Rear reading lights
• Power steering
• Passenger vanity mirror
• Passenger door bin
• Passenger cancellable airbag
• Overhead console
• Low tire pressure warning
• Fully automatic headlights
• Front wheel independent suspension
• Front reading lights
• Front anti-roll bar
• Dual front impact airbags
• Driver door bin
• Delay-off headlights
• Bumpers: chrome
• Brake assist
• AM/FM radio
• ABS brakes
• Voltmeter
• Tachometer
• Electronic Stability Control
• Air Conditioning
• 6 Speakers

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): 3638
• Curb Weight - Rear (lbs): 2665
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1425
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9500
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2375
• Maximum Trailering Capacity (lbs): 16400
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Axle Capacity - Front (lbs): 4400
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.8 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QHQ
• Front Tire Size: LT245/75R17
• Rear Tire Size: LT245/75R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): 3195
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 3.57
• Steering Ratio (:1), At Lock: 3.57
• Turning Diameter - Curb to Curb (ft): 47.9
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 144.20
• Length, Overall w/o rear bumper (in): 230.60
• Width, Max w/o mirrors (in): 80.00
• Height, Overall (in): 77.90
• Overhang, Front (in): 38.80
• Overhang, Rear w/o bumper (in): 52.60
• Front Bumper to Back of Cab (in): 141.40
• Cab to Axle (in): 41.60
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 38.20
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.80
• Ground Clearance, Rear (in): 8.50
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.80
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 62.50
• Cargo Box Width @ Wheelhousings (in): 50.60
• Cargo Box (Area) Height (in): 21.00
• Tailgate Width (in): 61.60
• Cargo Volume (ft³): 60.7
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.10
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 65.20
• Front Hip Room (in): 60.30
• Second Head Room (in): 39.50
• Second Leg Room (in): 34.40
• Second Shoulder Room (in): 65.30
• Second Hip Room (in): 61.80
• Summary

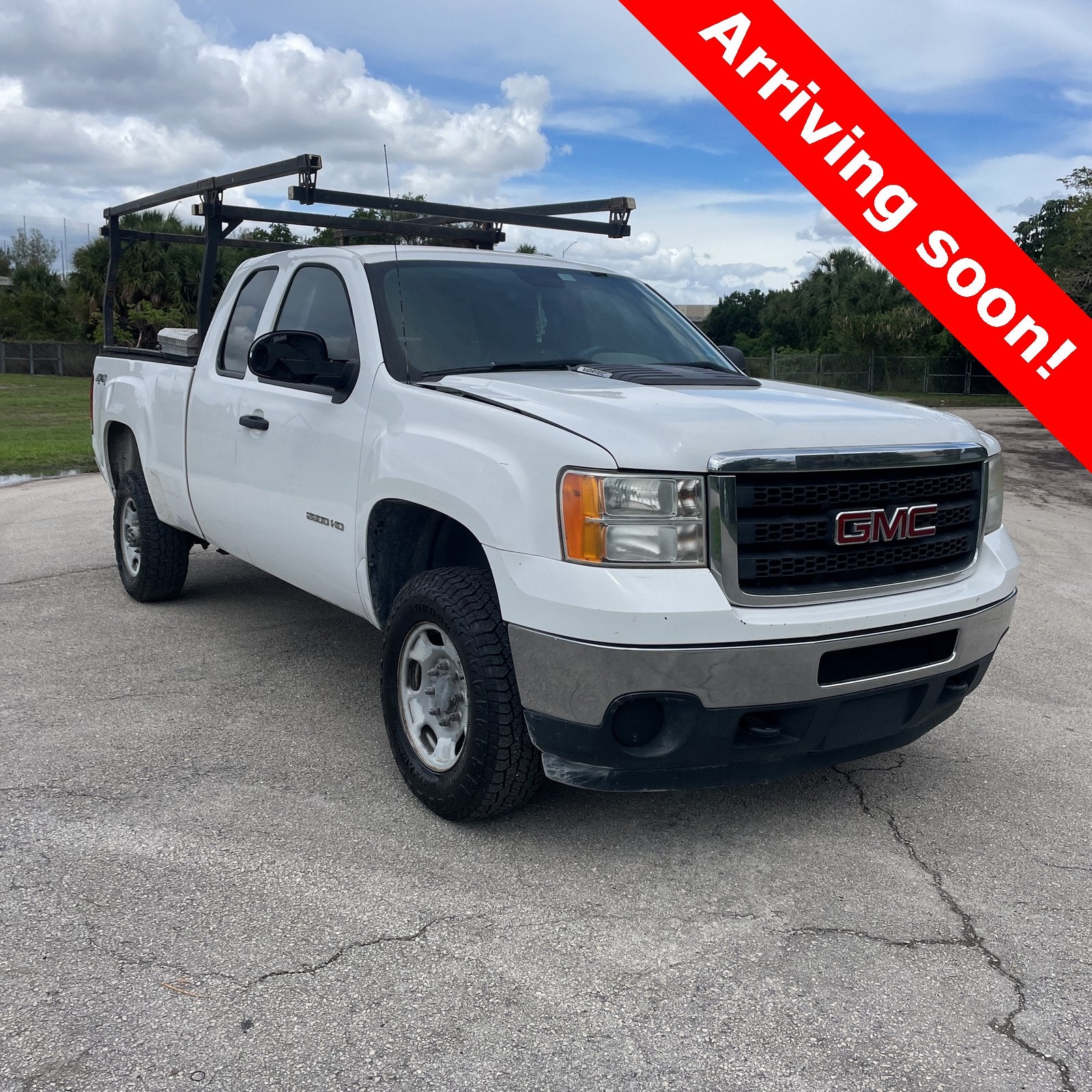

• Vehicle Name: GMC Sierra 2500HD
• Body Style: Extended Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
